2 - Initial Nodes

2.1 - Scene Loop

In the Infinity Quest Dynamic tab you will see the node editor on the left and the scene history on the right.

To begin with we need to ensure that our scene has a custom Scene Loop.

The Scene Loop is the main node that will be used to drive the scene. It is where turn selection and other scene logic is handled.

For this scene we are interested in setting up the initial story premise in a dynamic way.

We do not care about changing any of the actual loop logic.

With this in mind we can extend a new scene loop from the default talemate loop. This will give us a copy of the default loop that we can add to while keeping the rest of the loop logic up to date with any future improvements.

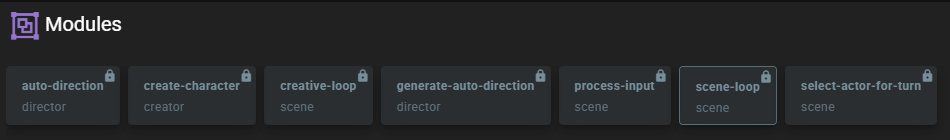

The scene-loop module should already be selected in the :material-group: Modules library.

Click the :material-plus: Create Module button and in the menu select :material-source-fork: Extend Current.

In the modal leave everything as is and click Continue.

This will create a copy of the scene loop node and add it to the scene.

This copy is owned by the scene and you can modify it.

The node editor will automatically open to the copy.

!!! info "Module colors" - Modules owned by the scene are colored purple. - Modules imported from the templates directory are colored brown. - Modules owned by talemate are colored grey.

!!! info "Editor navigation" - Hold mouse and drag to pan the canvas. - Mousewheel to zoom in and out.

!!! info "Locked groups" In the node window you will see a bunch of (Inherited, Locked) groups. These come from the default talemate loop that was extended and cannot be edited or changed in this copy.

**The benefit:** If the default talemate loop is changed in the future, this copy will automatically inherit the changes to these nodes.

![Scene Loop - Extended - Node Editor view](./img/2-0020.png)

Read the [Node Editor - Inheritance](/talemate/user-guide/node-editor/core-concepts/module-inheritance/) documentation for more information about how inheritance works in the node editor.

2.2 - Hooking into scene initialisation

Generating a story premise is something that must happen at the start of the scene.

We need to somehow hook into the scene initialisation.

We can do this using an event module.

!!! info "Event modules" Events are signals sent by talemate during the scene loop. There are many different events and the Event module is a node module that can listen to a specific event and do stuff when it happens.

Learn more about events in the [Events](/talemate/user-guide/node-editor/core-concepts/events/) documentation.

!!! warning "Clear selection" If you have any nodes selected from your earlier playing around and familiarizing yourself with the node editor, make sure you deselect them now.

Just click on an empty space in the canvas to deselect all nodes.

Find the :material-plus: Create Module button and select :material-alpha-e-circle:Event.

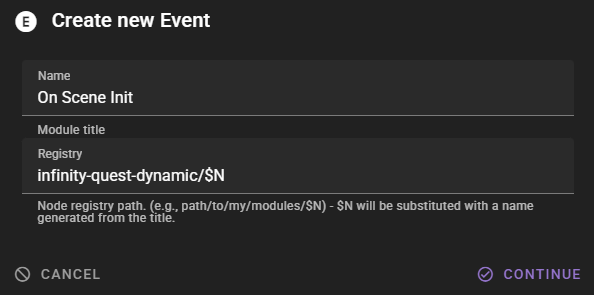

In the modal fill in the Name and Registry fields:

• Name: On Scene Init
• Registry: infinity-quest-dynamic/$N

The registry value determines where in the node creation menu the new module will exist. Its also a unique id for the module itself. $N will be replaced with a normalized version of Name.

Click Continue.

The event module will be created and automatically loaded. You should be presented with an empty node canvas.

For now, go back to the Scene Loop by clicking on it in the :material-group: Modules library.

--8<-- "docs/user-guide/howto/infinity-quest-dynamic/.snippets.md:load-scene-loop"

Double click the canvas above the Prevent Infinite AI Turns group.

The Search for Node window will open up.

Type on scene into the Search field and select the On Scene Init node that we created moments ago.

!!! note "Alternatively - Right click for node context menu" You can also right click on the canvas above the nodes and select Add Node to add a new node.

The path should be `Add Node > infinity-quest > On Scene Init`

![Scene Loop - Right click for node context menu](./img/2-0008.png)

!!! tip "When extending a module - place custom nodes above the inherited nodes" Its good practice to place custom nodes above the inherited nodes.

The idea being that the original node will extend down the canvas and the space above will be available for custom nodes.

Once the On Scene Init node is added, it should appear where your mouse was when you initiated the node creation.

Click on the event_name node property and type in scene_loop_init.

Next click Save in the top right of the node editor.

--8<-- "docs/snippets/common.md:save-graph"

We are now hooked into the scene initialisation and can start working on dynamic scene creation.

2.3 - Testing the scene initialisation

Lets test that this works by adding some simple generated narration on scene initialisation.

Open the On Scene Init node module.

--8<-- "docs/user-guide/howto/infinity-quest-dynamic/.snippets.md:load-on-scene-init"

Search for the following nodes and (remember double click for search or right click for node context menu) add them to the canvas:

• Generate Progress Narration - This node will be used to generate the introduction text, using the narrator agent.
• Make Bool - We will use this as a basic ON state for the generation node.
• Make Text - This will be used for us to provide instructions to the narrator agent.
• Set Introduction - This will store the generated introduction text with the scene and update it in the scene history.

Once you have added all the nodes, hook them up like so:

!!! note "How to connect nodes" Nodes have input and output sockets.

Output sockets are on the right and input sockets are on the left.

Drag from the right-side socket of the node you want to connect from to the left-side socket of the node you want to connect to.

In the Make Text node click on the value node property and type in

Generate the introduction to a random exciting scenario
for the crew of the Starlight Nomad

Hit Ctrl+Enter to submit the instruction.

--8<-- "docs/snippets/common.md:save-graph"

Click the :material-play: button in the top right of the node editor.

If everything is hooked up correctly you should see the Generate Progress Narration node work for a bit and then the introduction text should be updated from its generation.

Keep playing the module to see the introduction text being updated with each new generation.

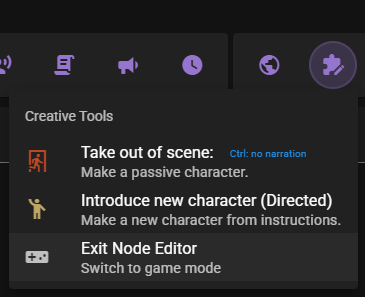

You can then also test this outside of the node editor by switching to gameplay mode in the scene tools.

It will load the scene and the intro text should update once more.

Switch back to the node editor using the same menu.

2.4 - Ok, but this happens every time the scene is loaded?

Currently - yes. Which is not what we want.

So lets change that.

--8<-- "docs/user-guide/howto/infinity-quest-dynamic/.snippets.md:load-on-scene-init"

In order for this to happen only once during the lifetime of the scene, we need to do a couple of things.

1. Once we generate an introduction, we need to set a permanent state variable to indicate that we have already generated an introduction.
2. Check if the introduction is already set. If it is, we skip the generation.

First lets organize the nodes a bit. Its generally recommended to use groups liberally and as soon as possible, as it keeps the canvas clean and easy to understand.

!!! note "Groups" Groups are a way to organize nodes in the node editor.

They are useful for keeping the canvas clean and easy to understand.

They can be resized and moved around like any other node, all nodes within a group will be moved together.

:material-resize: To resize a group, drag its lower right corner.

:material-cursor-move: To move a group click on a blank area in it and drag.

Right click the canvas and click Add Group.

Resize and move the Group so it encompasses the current nodes.

!!! note "Alternatively"

Hold `ctrl` and drag a rectangle to select all 4 nodes.

Then right click the canvas and select `Create group from selection`. Deselect the nodes after.

Then right click the group and select Edit Group > Title and title it "Generate Introduction".

Next remove the Make Bool node as we will not be needing it. (Select it and press the Delete key)

Find and add the following nodes to the canvas:

• Get State - We will use this to check if the introduction has been generated.
• Set State - We will use this to set the introduction as generated.
• Switch - We will use this to only generate the introduction if it has not been generated yet.

!!! learn-more "Learn more about states and switches"

- [State Management](/talemate/user-guide/node-editor/core-concepts/states/)
- [Switches and conditional routing](/talemate/user-guide/node-editor/core-concepts/switches/)

2.4.1 - Setting the state

!!! note "Instructions going forward" Going forward node connection instructions will be provided in the format:

`<Node>.output_name` :material-transit-connection-horizontal: `<Node>.input_name`

1. <Set Introduction>.state :material-transit-connection-horizontal: <Set State>.value
2. In the Set State node set the name field to intro_generated and the scope to game.
3. Shift+Click the Set State node title to auto-title it.

!!! note "Auto titling" This is a feature some nodes have that automatically titles the node based on the value of their properties. In the case of the Set State node, it will title the node to SET {scope}.{name}, so in this case SET game.intro_generated.

Hold `Shift` and click the node **title** to auto-title it.

With this we're essentially saying if the Set Introduction node is executed set the intro_generated state variable to true.

2.4.2 - Checking the state

1. <Get State>.value :material-transit-connection-horizontal: <Switch>.value
2. In the Switch node set the pass_through field to false.
3. <Switch>.no :material-transit-connection-horizontal: <Generate Progress Narration>.state
4. <Switch>.no :material-transit-connection-horizontal: <Set Introduction>.state
5. In the Get State node set the name field to intro_generated and the scope to game.
6. Shift+Click the Get State node title to auto-title it.

Here we are using the Switch node to only route to the Generate Progress Narration node if the intro_generated state variable is false or not set. (or not truthy, for people familiar with this concept)

!!! note "State socket" The state socket is a REQUIRED pass-through socket that can be fed any value.

Its main purpose is to control the activation of a node. If the node has a state socket and the state socket is not connected or the connection is not active the node will not be executed.

!!! tip "Double check!" Reminder to double check that you have set the scope to game in both the Get State and Set State nodes.

--8<-- "docs/snippets/common.md:save-graph"

Now clicking the :material-play: button should only generate the introduction text once.

And you can verify that the game state has been saved by opening the Debug Tools and then the Edit Scene State window.

!!! info "Debug Tools" The Debug Tools are a set of tools that are used to debug the scene, AI prompts and other things.

They are accessible by clicking the **:material-bug:** button in the top right of the talemate window.
